Products-Talos

G TYPE

BEST：

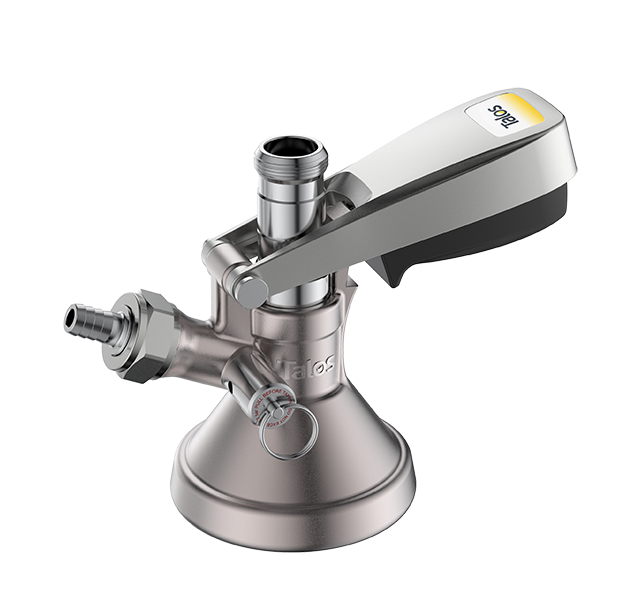

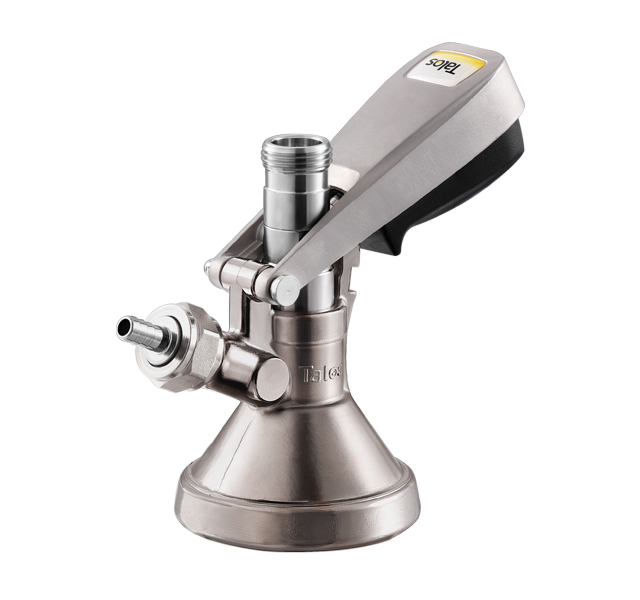

G coupler built with a brass body, but with a stainless steel probe, and handle. Talos coupler is one of the most trusted couplers.

KEGERATOR DESGIN：

Talos short couplers are suitable for proper refrigeration, with intake and output of beer on both sides. This innovative coupler is great for any bar system.

Customized scheme

Specification parameters

Part No.
Probe Material
Body Material
Handle
Surface
Pressure Relief Valve
Gas Port O.D.

1023601
SS304
Brass
SS304
Tin-nickel Plated
/
ф8mm

1023618
SS304
SS304
SS304
S.S
/
ф8mm

1023701
SS304
Brass
SS304
Tin-nickel Plated
46~55 PSI
ф8mm

1023718
SS304
SS304
SS304
S.S
46~55 PSI
ф8mm

Packaging information

Part No.
N.W/Unit (Kg)
Unit Dimension
G.W/Unit(Kg)
Pcs/ Ctn
Box Dimension
G.W/Box(Kg)

1023601
1.00
16.8cm Lx8.5cm Wx12cm H
1.10
20
44cm Lx35cm Wx26cm H
22.40

1023618
1.00
16.8cm Lx8.5cm Wx12cm H
1.10
20
44cm Lx35cm Wx26cm H
22.40

1023701
1.00
16.8cm Lx8.5cm Wx12cm H
1.10
20
44cm Lx35cm Wx26cm H
22.40

1023718
1.00
16.8cm Lx8.5cm Wx12cm H
1.10
20
44cm Lx35cm Wx26cm H
22.40

Product line draft
